Construction Methods and Advantages of Using Timber Framing in Houses

Wood framing is an ancient construction method in which large timber frames open a vast interior with fewer supports. This pre-metalworking method commonly used wood-to-wood joinery, essential for erecting homes, barns, and cathedrals in areas thickly covered with forests.

By the end of the 1900s, timber framing had become widespread worldwide due to its strength in joinery. The focus on natural materials and the self-sufficiency of the counter-culture movement intensified this revival.

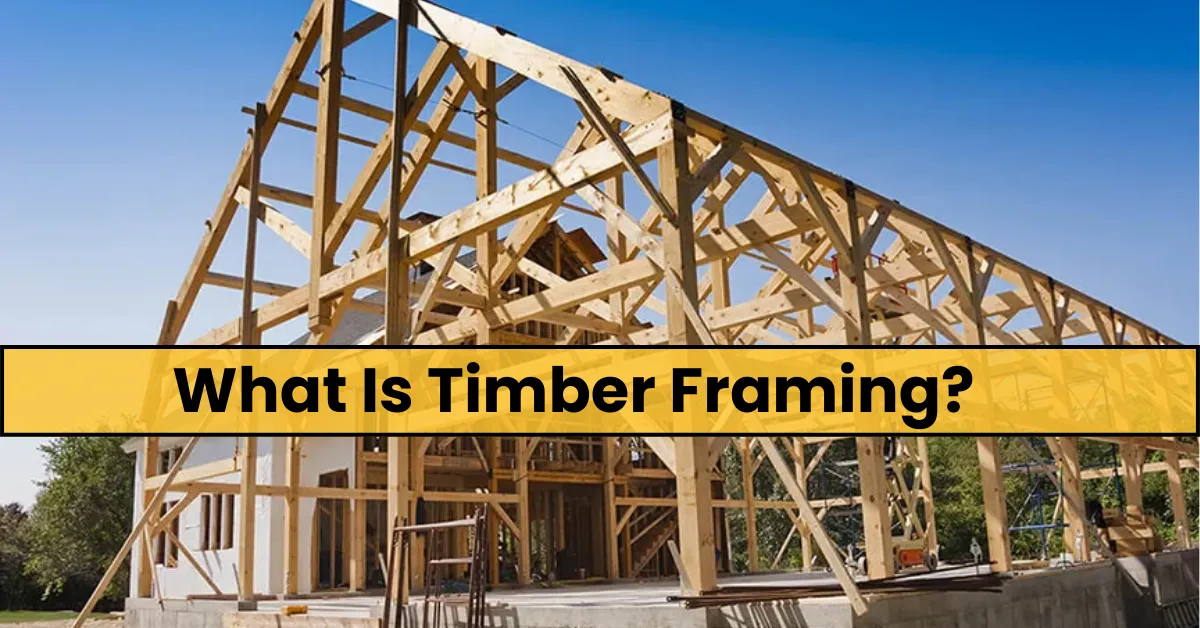

What Is Timber Framing?

Timber framing is a type of construction technology with a specific building style. It employs huge timber frames to construct the skeleton framework of a building, allowing for interior open, expansive areas supported by almost negligible interior supports.

Traditionally, timber framing is an art in a binary between two or more pieces of timber contented together using wood-to-wood joinery. This technique was used in constructing houses even before metalworking was invented.

Timber posts and beams were used to build homes, barns, shops, and other structures where our forebears lived and worked. The wooden frames of olden times were constructed without nails, bolts, or metal joinery and were expected to last hundreds of years rather than just a few decades.

Historical Background

Timber framing was a primary building mode even before there was history. Any culture nearly adopted it because its lands had plentiful forests. Since natural timber was abundant, people used it to create shelter, from simple houses to massive cathedrals. This was revived due to surging interest in and wishes for sustainable and eco-friendly building practices and a return to tradition in craftsmanship.

Better of All Other Framing

It is the oldest system that uses enormous wooden beams, thus providing a mighty and beautiful structure. The old hand dates back thousands of years and touches history in buildings in Europe, Asia, and the Americas.

1. Strength and Durability

Timber frame construction is relatively famous for its strength. The detailed beam sections of the buildings can hold massive loads, making them pretty strong. Timber can withstand various climatic conditions, making it an excellent choice for many climatic conditions.

2. Aesthetics

Because the open exposure of the wooden beams makes timber frame buildings very exposed, the aesthetic appearance of buildings tends toward a rustic look and, charmingly, gives an attractive appeal to the surroundings, thus attracting most homeowners and architects.

The feeling of warmth and closeness to nature that visible wood gives is thus an upgrade of the whole atmosphere within a house.

3. Sustainability

One of the essential advantages of timber framing is its sustainability. It has been considered a renewable source of material since it is comprised mainly of trees obtained from managed forests. This destroys the massive carbon footprint of that building material.

Timber framing is the greener building process in terms of carbon footprint compared to steel and concrete. Timber’s carbon footprint is relatively small, so this is a greener building process.

4. Customization and Flexibility

Wood framing requires more flexibility in design. The beams can be designed in many shapes and sizes, providing unique architectural features that other materials could not otherwise include.

5. Connection to The Traditional Approach

It is a building process and a connection with the past building process. Many welcome the conventional approach and artistry of making such a timber-framed building.

It is an opportunity to pay respect to older construction methods while enjoying the technical benefits of the modern world.

6. Thermal Insulation

Wood is an insulator. It keeps the interiors cool and pleasant. The building structure can warm a house during winter and cool it during summer, thus minimizing heating and cooling costs. This installation property makes timber-framed houses remarkably energy-efficient as a natural attribute.

Types of Timber Framing

Antique Timber Framing

1. Post and Beams

This Type of Frame Is the Most Authentic of All Wooden Frames. This Traditional Construction Consists of Long Columns and Horizontal Beams. Even the Joinery Is Sometimes Done with Mortise and Tenon, Held in Place with Wooden Pegs. This Style Is the Sturdiest yet Still Provides Open, Expansive, Airy Interior Spaces.

2. Balloon Framing

Balloon Framing Was Discovered During the 19th Century. It Involves Using Long, Vertical Studs from The Foundation to The Roof. This Method of Construction Has Several Advantages. These Include Ease and Speed During Assembly. Although They Enjoy Some Advantages, It Is Hardly Used Because It Is Prone to Fire and Warps.

3. Platform Framing

This framing is also called “stick framing.” in this technique, every floor is a base for the following story. It is easier to make and has good fire stops between floors, hence its popularity in modern home construction.

Modern Timber Framing Technique

1. Reinforced Concrete with Wooden Mesh

This new approach combines the aesthetic features of timber framing with the strength and durability of reinforced concrete. As it integrates age-old beauty with modern values in the structural elements, this design is ideal for long-lasting buildings.

2. Prefabricated Timber Frames

These Frames Are Manufactured in The Factory and Delivered to The Site. the Result Is Precision and A Shorter Duration of Construction Time; These Methods Combine Traditional Engineering Principles of Wood Framing with Modern Manufacturing Efficiency.

Timber Framing Components

1. Beams and posts

Beams:  Members that are horizontal in direction carry floors and roofs.

Posts: Members that Are Vertical in Orientation Transfer Loads to The Foundation.

2. Sills and Plates

Sills: Horizontal beams at the bottom of a building interfere with foundation loads.

Plates: Horizontal Beams at The Top of Posts Will Support Roof Structures.

3. Braces

Diagonal members that impart lateral stability and resist racking.

4. Rafters and Purlins

Rafters: Sloping beams that bear the roof.

Purlins: Horizontal beams that run parallel to the ridge of the roof. Purlins are said to carry rafters.

5. Joists

Horizontal beams that carry floors.

6. Joinery

Mortise and Tenon Joints: A traditional wooden joint wherein a projecting tenon fits into the framework to fill in a corresponding mortise hole formed inside.

Wooden Pegs: Pinned Joints.

7. Trusses

The structural framework of beams or timbers is used to support roofs.

Application Process of Timber Framing

Design and Planning

1. Architectural Design

Begin with an architectural design that comprehensively depicts the dimensions, layout, and other aesthetic features of the structure

2. Engineering Analysis

An engineering analysis should ensure that the structure withstands enough stresses and loads.

3. Material Selection

Availableness, cost, and structural requirements are determined for this type of wood. Oak, pine, or cedar are the most acceptable types of wood.

Foundation Construction

1. Site Preparation

Precise and level the ground on your construction site.

2. Foundation laying

Pour a concrete or pier-and-beam foundation to support the timber frame. This foundation should be leveled because leveling is the only sure way to achieve stability in a structure.

Fabrication

Timber processing is cutting and shaping timber beams, posts, and other components according to a designer’s specifications. It may be traditional by-hand tools or new-fangled by way of modern machinery, for example, CNC, for precision

1. Crafting of Joinery

Make mortise and tenon joints to be remarkably tight. This sensitive work requires skill and precision to ensure the joint will hold.

2. Pre-Assembly

Parts of the frame have been pre-assembled in the workshop. These moments fit together and in order before being transported to the site. Identifying and solving issues on-site occur from there.

Frame Raising

1. Provision of Timber

Deliver pre-cut and pre-assembled timber members to the building site.

2. Installation of Posts and Beams

Construction of the frame begins with vertical posts that will anchor into the foundation and temporarily brace.

3. Framing

The horizontals are held together by the posts through mortise and tenon joints. Additional diagonal braces support the frame.

4. Roofing

To finish the roof, add rafters and purlins. If trusses are to be used, install them now.

Secure the Frame

1. Wood Pegs

Wooden pegs are driven into the joints to solidify the fix. This does away with the use of nails or screws.

2. Additional Bracing

Any further bracing is to be added to ensure the stability of the frame.

Closure & Finalisation

1. Wall Closures

Set up your wall closures with SIPs, Structural Insulation, timber cladding, lath, and plaster. These will be your insulation and make your house weathertight.

2. Windows and Doors

Window and door installation must fit the timber-framed construction well.

3. Roofing

Complete the roofing by adding roofing materials – shingles or tiles.

Internal & External Finishing

Construction of Internal Walls and Fitting of Insulation: Complete the Construction of Walls Inside the Building and Fit Insulation for Better Energy Efficiency.

1. Floors

Fix flooring materials such as timber wood, tiles, etc.

2. External Finish

Final paint or stain on exterior timber for protection and aesthetic value.

3. Final Touches

Trim work and other features to finish the building.

The Blend of Modern and Traditional Approaches

Traditional Roots

A mix of tradition and modernity in timber framing wood has been used for construction and crafts for thousands of years. The wood fiber acquired from it has always been the source of paper and cloth. This method accommodates traditional techniques passed down from generation to generation.

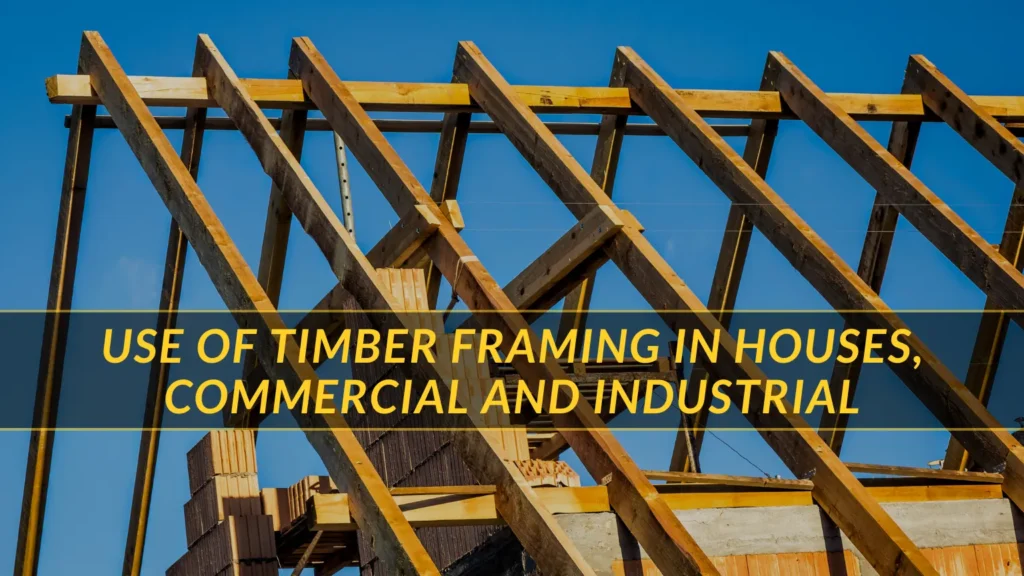

Modern Application

Advanced technologies use timber framing to build sustainable materials. In construction, timber framing is used in engineered wood products like plywood and oriented strand boards to offer strength and versatility.

Timber framing is processed into rayon and other environmentally friendly fabrics in textiles. It can also be used in bioplastics, providing a greener alternative to petroleum-based counterparts.

Versatility

Modern Technologies Allow Timber Framing to Be Used Innovatively but Highly Traditionally. as More Industries Move from Paper to Cutting-Edge Composites, This Proves and Confirms Its Versatility.

Histories and Cultural Appreciation

History Appreciates Traditional Craftsmanship and Techniques Applied to Buildings. Timber Framing Links These Antiquated Practices, Hence Giving a Feeling of Continuity and Heritage.

History Appreciates Traditional Craftsmanship and Techniques Applied to Buildings. Timber Framing Links These Antiquated Practices, Hence Giving a Feeling of Continuity and Heritage.

Benefits of Timber Framing in House Development

Here are some benefits of using timber framing in house development

Fire Resistance

Contrary to what you might think, when exposed to fire, large timber beams char on the outside, creating an insulating layer that protects the inner core. This slows the burning process and gives the structure more time to remain intact.

Quick Assembling

The elders’ wisdom on timber building includes the fact that labor is a factor that will determine how fast the construction will be completed. But thanks to technological advances like ready-made parts and CNC joints, this will help to put up the structure even quicker. Thus, this will lead to a shorter construction period and, most likely, reduced hiring costs.

Structural Flexibility

Timber framing is quite adaptable, so alteration or extension of structures is possible several years later. This is good news for homeowners needing extra rooms or remodeling houses.

Soundproofing

The timber textures have a good sound-absorbing capacity, so houses built of timber frames are subject to less noise, even from exteriors. This is very important in environments with many distractions or even when designing quiet places within buildings.

Resale Value

Timber-frame buildings have a higher resale value because of their durability, beauty, and environmental consciousness. Innovative and Aesthetic timber-frame houses are always in higher demand in the housing market.

Environmental Benefits of Timber Framing

Here are some eco-friendly benefits of using timber framing for construction

Connection to Nature

Those who reside within timber-framed buildings tend to enjoy more of nature’s embrace, as the raw materials used within such interiors typically contribute to one’s comfort.

Eco-Friendly Construction

Timber framing minimizes the amount of debris disposed of in the environment compared to other forms of construction. In addition, timber waste can be processed for different purposes, such as mulching or making paper and biofuel, thus aiding in green building.

Environmental Awareness

As the world continues to change in drastic and explosive ways, sustainability will be able to ensure its safety. The sustainable use of forest-produced renewable resources and timber framing fits this green story.

Timber Framing Construction Estimation

Estimating the cost of timber framing construction considers materials, labor, the complexity of your design, and location. Here is a simplified explanation to help you understand the process.

Materials

The Main Cost Is High-Grade Wood, Such as Oak, Pine, or Cedar. You Would Also Need Hardware for Joinery, Such as Wooden Pegs and Metal Connectors, and Sheathing Materials, Such as Plywood.

Labor

It Is Incredibly Labor-Intensive. Highly Skilled Craftsmanship Is Required. Cutting and Fitting the Timber Beams Require Carpenter and Joiner Work. the Labor Cost Is Directly Related to The Skill Level and Experience.

Design Complexity

The Cost Increases with More Intricate Designs and Unique Architectural Features, Requiring More Time and Skill. However, Pre-Designed Plans Are Very Cost-Effective Due to Their Efficiency.

Location

Regional Factors Include Material Price Variation and Labor Rate Fluctuation, Which Can Affect Your Pocketbook. Buildings in Town Will Require More Labor, and Hauling Materials Will Cost More in Remote Areas.

Square Footage

Calculating the Costs by Square Footage Is Sensible. Timber-Framed Houses Cost Between $150 and $300 per Square Foot. Thus, a 2,000-Square-Foot House Would Cost Between $300,000 and $600,000.

Other Costs

Incorporate Foundation and Finishing Material Costs, Such as Insulation and Drywall, and Utility Costs, Like Plumbing and Electrical Systems.

Conclusion

Therefore, timber framing offers the best fit for modern times since its method efficiently integrates old-skilled craftsmanship. Timber framing is a construction strategy that was embraced long ago, and it is worth the modern-day practice since it is considered economical and practical. The reasons behind its beauty, practicality, and joy of embracing nature leave no one indifferent to the modern construction. Given the concern for sustainability and using energy-efficient materials and methods, timber framing will still be an essential building method.
